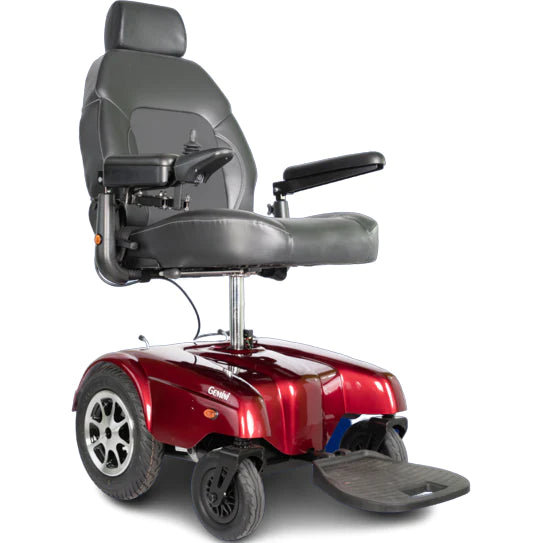

The Merits Health Gemini Heavy-Duty Power Wheelchair
Introducing the Merits Health Gemini Heavy-Duty Power Wheelchair, your gateway to unparalleled mobility and independence. With its robust features and exceptional performance, this power wheelchair is ready to take you where you want to go.
Built for Performance and Versatility

The Gemini power wheelchair is engineered for excellence. With a ground clearance of 4" and an overall height of 45", it effortlessly navigates various terrains while providing a comfortable and elevated view of your surroundings. This chair is not just a mode of transport; it's a statement of capability.
Highly Adjustable for Your Comfort

Experience the ultimate in comfort with the Gemini's highly adjustable features. Its unique suspension system ensures a smooth ride, while its excellent maneuverability allows you to navigate tight spaces and crowded areas with ease. This chair is tailored to your needs, ensuring every journey is a comfortable one.
Heavy-Duty Design, Unmatched Strength

Choose the Gemini power wheelchair to match your requirements. It's available in two variants: one with a total weight of 242 lbs and a weight capacity of 350 lbs, and the heavy-duty option with a total weight of 350 lbs and an impressive weight capacity of 450 lbs. No matter your choice, rest assured that strength and reliability come standard.
Powerful and Long-Lasting

The Gemini is equipped with a DC 24V, 240W motor, powered by double 12V/22NF (50AH) batteries. With a 5A off-board charger, you can conveniently recharge your wheelchair, ensuring you're always ready for your next adventure. Enjoy a maximum speed of 5 mph and an impressive range of up to 20 miles, allowing you to explore far and wide.
Experience Freedom with Gemini Power Wheelchair
The Merits Health Gemini Heavy-Duty Power Wheelchair isn't just a mobility solution; it's your key to limitless possibilities. Whether you're exploring the outdoors, running errands, or simply enjoying a leisurely stroll, do it with confidence and style. Elevate your mobility—order your Gemini power wheelchair today and experience the freedom you deserve.
Specifications
Product Manual: Manual
Product Brochure: Brochure
Weight Capacity | 450 lbs, 350 lbs |
Drivetrain | RWD |
Seat Type | Captain or Pan |
Seat Width | P301: 22" P30111: 20” |
Seat Depth | P301: 22” P30111: 20” |
Backrest Height | 22" |
Seat-to-Floor Height | P301: 22”- 24” P30111: 24” - 29” |
Elevating Seat | P30111 - 5" |
Overall Length | 41" |
Overall Width | 24" |
Overall Height | 45" |
Turning Radius | 21" |
Ground Clearance | 4" |
Total Weight | 242 lbs, 350 lbs |
Wt of Heaviest Pc | 126 lbs, 146 lbs |
Max Speed | 5 mph |
Per Charge Range | up to 20 miles |
Motor | DC 24V, 240W |
Controller | P&G VR2 60A |
Battery Size (2) | 12V/22NF (50AH) |
Charger | 5A off-board |
Gradient | 10 ° |
Front Wheels | 9" foam filled |
Drive Wheels | 14" foam filled |
Rear Wheels | 3"anti-tippers |
Group | Group 2: Heavy Duty |
HCPCS Code | K0824/K0825 |

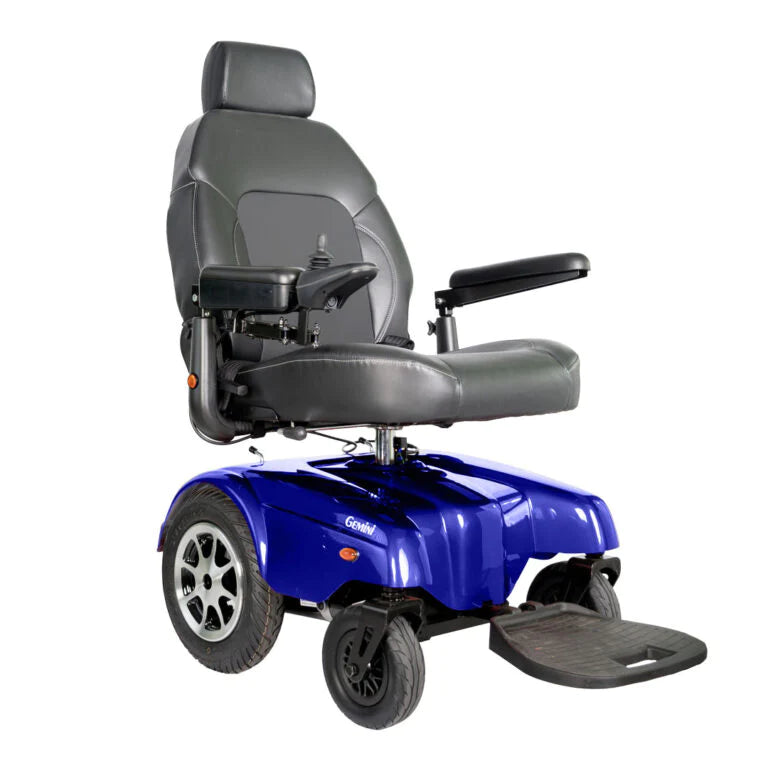

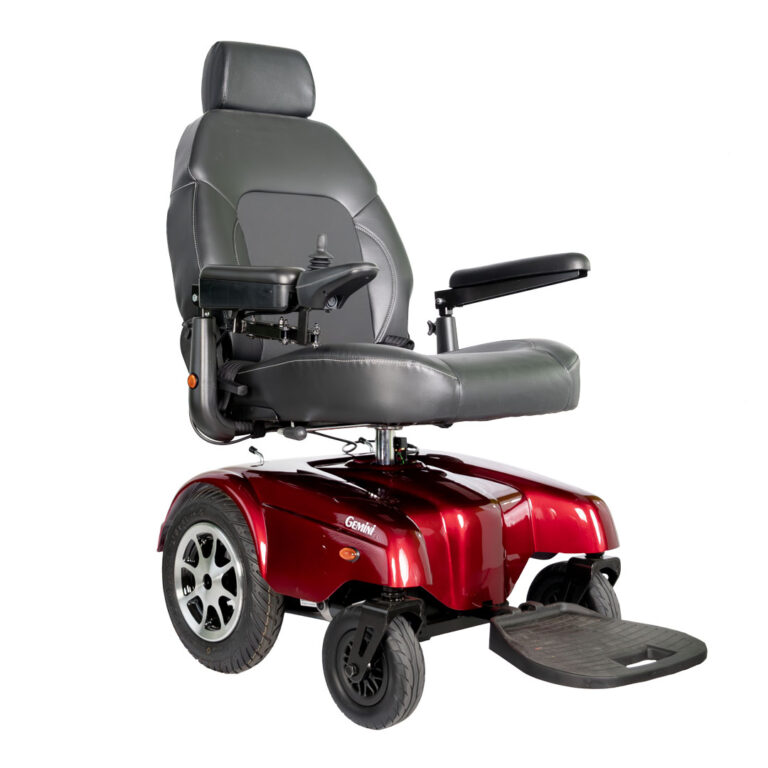

Standard Colors | Red or Blue |
The Mobility Home Difference
✅ Free Shipping on all of our products.
✅ Free Discounts - up to 10% off
✅ Best price guaranteed - 100% Best Price
✅ Easy Returns - Read our policy below
✅ Secure payment - Secure checkout guaranteed
✅ Lifetime Customer Support - questions? Call us
✅ Authorized Dealer - Certified Dealer
✅ In Home Service and Repairs - Call us if you need this!
✅ White Glove Delivery and Protection Plans - Available On Most Products
✅ Testimonials and Reviews
✅ Satisfaction Guarantee
Order the Merits Health Gemini Today!

Any Questions?
Call 833-465-6956
We do not accept medicare or insurance

Warranty
5 Year frame warranty
18 Months warranty for the motor and electronic components.
Returns
We understand that finding the right mobility solution is important for your health and comfort. If you feel your product isn’t the perfect fit, we offer a 30-day return window to give you peace of mind.
To ensure our process remains smooth and fair, a 20% restocking fee will be applied, along with the cost of return shipping. We kindly ask that the product be returned in its original condition and packaging.
Our team is here to assist you every step of the way—please reach out if you need help with the return process.
To gain a comprehensive understanding of our Refunds and Returns Policy, we invite you to review, Click HERE.
